Matching 3" large heavy-duty square straight trailer tongues, this 2-5/16" ball coupler adopts industrial extra-thick steel and full galvanized treatment, with 10000LBS super heavy-load capacity. Professional reinforced wedge latch eliminates towing vibration and ensures ultra-firm connection. It is the standard matching accessory for 3" square tube campers, horse trailers and large heavy utility trailers, with durable anti-rust performance for long-term heavy use.
Product Description & Advantages

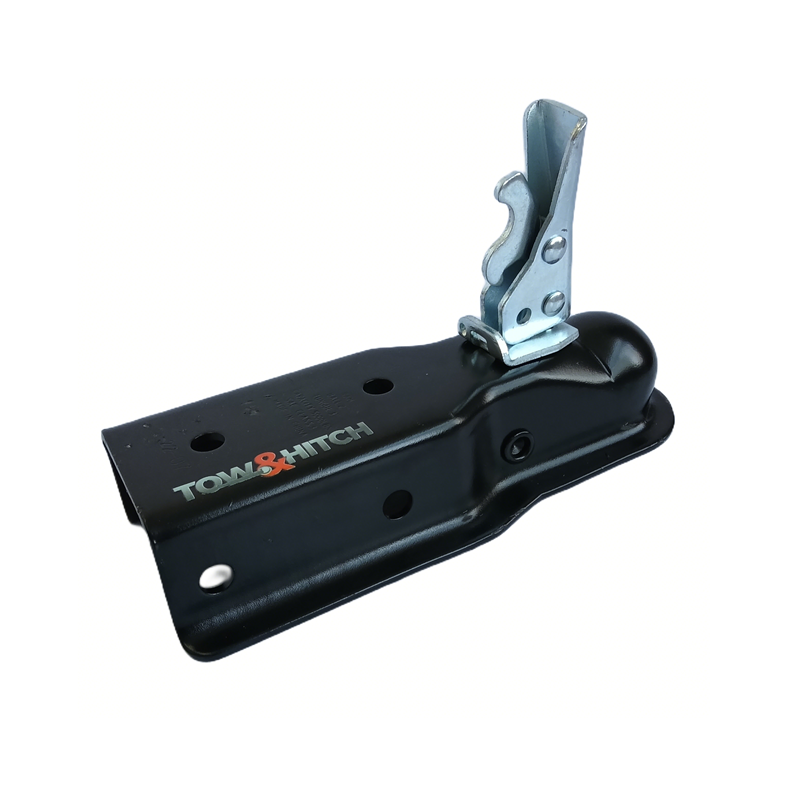

This bolt-on trailer coupler attaches to your 3" wide trailer tongue and locks onto a 2-5/16" trailer ball. Rated 10,000 lbs, it is a direct replacement for worn, damaged, or missing original couplers.
Why choose this coupler?
Fits 2-5/16" Ball — The most common size for heavy-duty trailers.
10,000 lbs Capacity — Handles heavier utility trailers, equipment trailers, and livestock trailers.
Bolt-On Installation — No welding required; bolts directly to the 3" channel tongue.
Rugged Build — Steel body with black powder coat resists rust and road debris.
Zinc Latch — Galvanized latch mechanism for smooth operation and corrosion resistance.
Safety Ready — Latch has a hole for a padlock or safety pin.
Ideal For:
heavier utility trailers, equipment trailers, and livestock trailers. Also ideal as a replacement coupler on existing trailers.
|
|
|
|
|
|
Specifications & SKU Information
|
Specification |
Details |
|
Brand |
YESHITCHI TOWSAFE |
|
Product Name |
Trailer Ball Coupler (2-5/16" Ball, 3" Channel, 10,000 lbs) |
|
Ball Size |
2-5/16" |
|
Tongue Channel Width |
3" |
|
Max GTW |
10,000 lbs / 4,536 kg |
|
Max Tongue Weight |
1,000 lbs / 454 kg |
|
SAE Class |
Class IV |
|
Body Material |
Stamped/formed steel |
|
Body Finish |
Black powder coat |
|
Latch Material |
Zinc-plated steel |
|
Mounting Type |
Bolt-on (multiple holes) |
|
Safety Lock Hole |
Yes — for padlock or safety pin |
|
Color |
Black body + zinc latch |
|
Weight |
[approx. 4–8 lbs] |
|
Warranty |
[1-Year Limited Warranty] |
|
Country of Origin |
[Made in China] |
What's in the Box

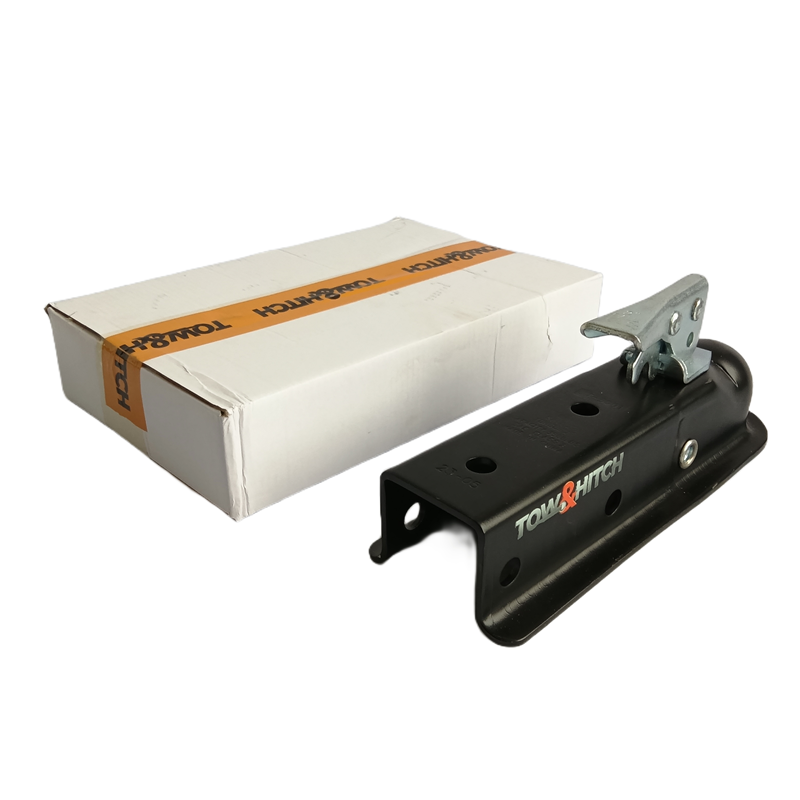

1 x Trailer Ball Coupler (2-5/16" ball opening, 3" channel, black)
[Mounting bolts NOT included — select appropriate bolts for your tongue.]
Frequently Asked Questions (FAQ)
Q: What ball size does this fit?
A: This coupler fits a 2-5/16" diameter trailer ball. Make sure your tow vehicle uses a 2-5/16" ball.
Q: What tongue size does it fit?
A: This coupler fits a 3" wide channel tongue. Measure the outside width of your trailer tongue before ordering.
Q: How much weight can it handle?
A: Rated 10,000 lbs gross trailer weight with 1,000 lbs maximum tongue weight. Never exceed this rating.
Q: Does it weld on or bolt on?
A: It bolts on. Multiple mounting holes align with your trailer tongue. You provide the mounting bolts.
Q: Do I need a padlock?
A: The latch has a hole for a padlock or safety pin. We recommend using one to prevent theft or accidental opening.
Q: Can I use this to replace a worn coupler?
A: Yes. This is a direct replacement for standard 3" channel couplers. Match the ball size (2-5/16") and channel width (3") to your existing setup.
Q: What is the difference between this and an A-frame coupler?
A: This is a straight channel coupler that bolts onto a flat 3" tongue. A-frame couplers mount on angled A-frame tongues. Make sure you have a straight channel tongue, not an A-frame.
Q: Is safety chain included?
A: No. Safety chains are sold separately. Always use safety chains when towing.
Q: What is your return policy?
A: Unused products in original packaging can be returned within [30 days] of delivery.
Disclaimer & Safety Warning
Do not exceed 10,000 lbs GTW or 1,000 lbs tongue weight.
Read all instructions before installation. Improper installation can cause trailer separation.
Use Grade 5 or stronger mounting bolts and torque to specifications.
Always confirm the coupler is fully seated on the ball and the latch is closed before towing.
Always use safety chains crossed under the coupler.
Use a padlock or safety pin through the latch hole to prevent accidental opening or theft.
Inspect the coupler, latch, and ball before each trip. Replace if worn or damaged.
Do not exceed your tow vehicle's towing capacity.
Manufacturer and seller are not liable for property damage, injury, or death from improper installation, overloading, or failure to inspect before towing.
